Description

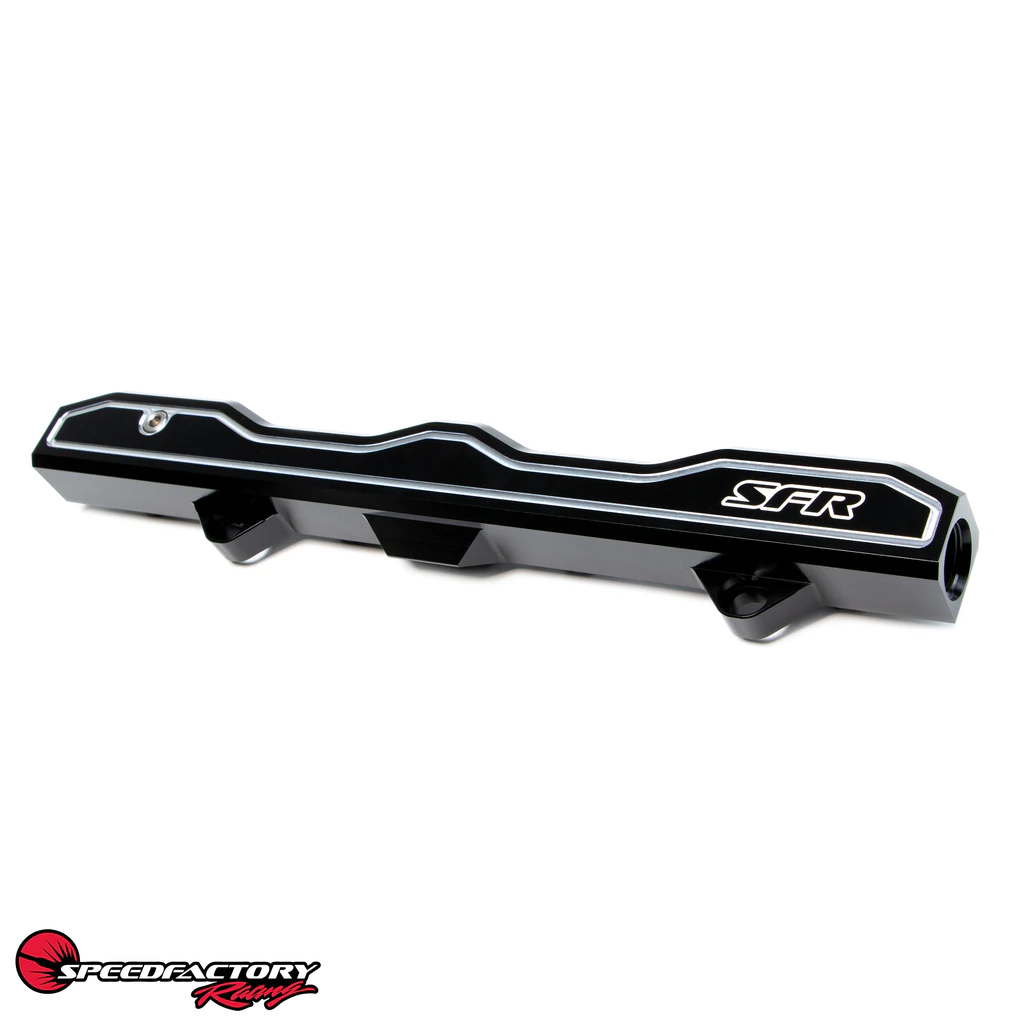

• Precision CNC machined from 6061-T6 billet aluminum
• Black Anodized finish throughout adds durability & eliminates corrosion
• Laser-etched SFR logo
• -10AN ORB Inlet/Outlet ports with massive 20.4mm (0.806”) fuel bore supports even the most demanding 2000+hp turbocharged setups on high volume alcohol-based fuels
• Center feed/return port for tucked fuel line routing if desired
• One (1) 1/8 NPT port for fuel pressure takeoff option (example: gauge, sending unit, or wet nitrous feed) and includes one (1) Stainless Steel 1/8 NPT plug
• One (1) additional M6x1.0 threaded hole that can be used for mounting bracket (example: EBC solenoid, wiring d-ring, etc)

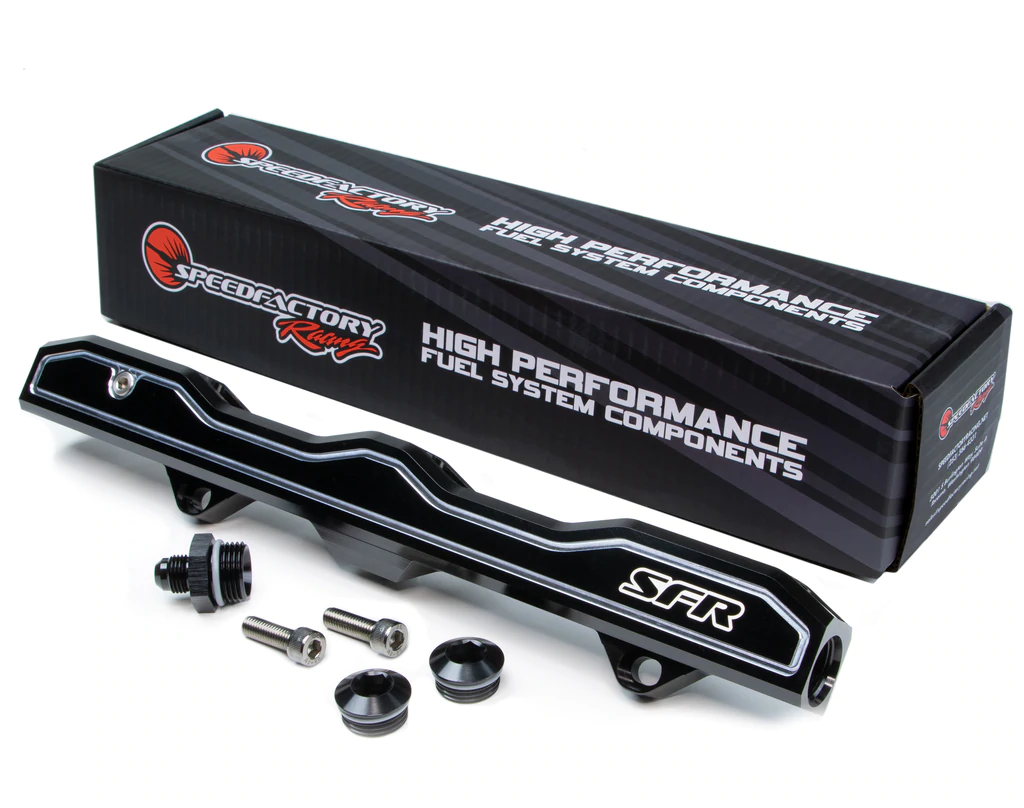

• Includes two (2) Stainless Steel M8x1.25x25mm socket head cap screws for fuel rail mounting & one (1) -10 ORB Male to -6AN Male feed fitting and two (2) -10 ORB Port Plugs for use with your commonly seen -6AN fuel system setups.
  NOTE:
  • Always make sure to thoroughly flush out any new fuel system components before use to make sure you do not get debris into your fuel injectors.
  • Always check for fuel leaks before starting the engine.
  • Replace all crush washers, o-rings, cushion rings, seal rings, and insulators when fuel rail is disassembled.
  • Different combinations of fuel injectors, adaptors, and intake manifolds require various spacers/adaptors/o-rings/etc for proper installation. This is a normal part of setting up your fuel system and you will need to figure out the appropriate parts for your specific combination.
